ENRCV00 Series

With the ENRCV00 Series industrial receiver you can control and monitor machine modules that communicate over major industrial bus systems. It is designed as the reliable link between your ExRemote handheld remote and the machine — translating operator commands into application-specific control of motors, actuators, and automation functions.

Because every machine is different, the ENRCV00 Series can be programmed to interpret remote controls exactly as your application requires. ExRemote provides development services to configure the receiver logic and integrate it with your system.

• Flexible control and integration, cables supplied.
• Works with major industrial bus systems to connect to supported modules in your machine.
• Programmable behavior to match your control philosophy and safety/function requirements.
• Supports both control and monitoring, enabling feedback and status handling where required.
• ExRemote development service available for implementation and integration support.

To ensure a robust wireless connection, the receiver implements Listen Before Talk and Channel Hopping. In environments where self-interference may occur, the transmit signal strength can be reduced in the field. Up to four remotes can be used in the same location at the same time, and automatic remote discovery at boot makes it easy to pair a different remote with a different receiver. Where wireless communication is not allowed, an optional wired connection can be used instead.

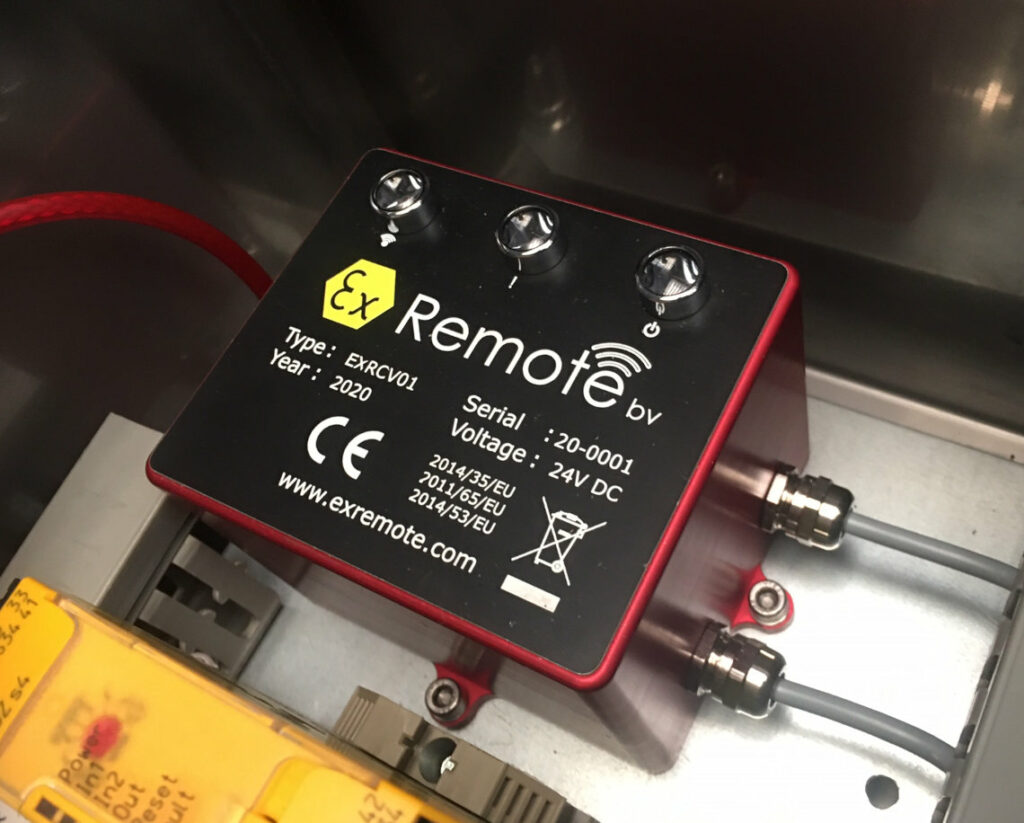

ATEX Considerations: The ENRCV00 Series itself is not ATEX / IECEx or Ex rated. However, it can be installed inside a pressurized “Ex p” control cabinet, allowing use within an explosive hazardous area as part of a compliant system design. Intrinsic safe (IS, “Ex i”) barriers should be used in case of a wired connection towards the remote. With real-world field experience, ExRemote can provide consultation to help select the right components and work with you toward a complete solution for your application.

Key specifications:

I/O:	2 x relay (NO + COM + NC) 3 x DO
Bus systems:	Modbus (RS485) CAN (CANopen) ProfiNET (DB) … (More upon request)
Connections:	M12 circular 8-pin male connector for power input and relay connection M12 circular 8-pin female connetor bus and safety outputs SMA antenna connector USB-C debug and programming connector
Operating temperature:	-20 °C [-4 °F] to 60 °C [140 °F]
Protection:	Water and dust tight (IP65+) High impact strength (IK10+)
Power:	24 VDC, Less than 100 mA consumption
Frequency bands:	868 / 915 / 925 MHz configuration for world wide coverage.
Range:	Up to 220 meter [700 feet] line of sight.
Certification:

Download the full specification sheet as PDF and the STEP file for easy integration:
